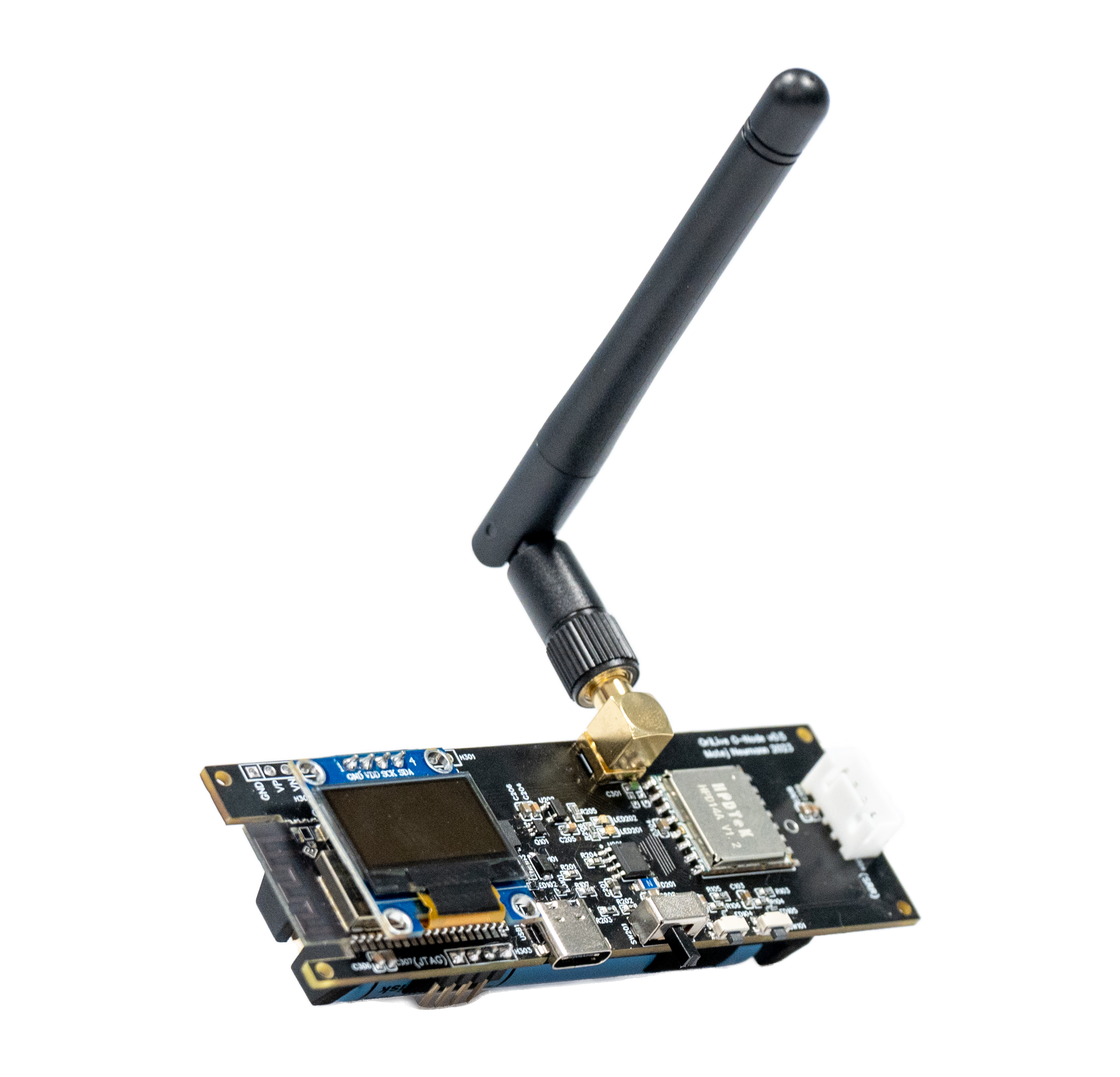

OriLive O-Node
The original unit for transmitting live splits times using OPRP protocol on LoRa.
O-Nodes have limited capabilities of internet connection via Wi-Fi, and can be therefore used as gateway, if at a convenient location. Primary communication is done via LoRa and OPRP.
Specifications
Wireless Connectivity
Wi-Fi 4, Bluetooth LE 4.2, LoRa
SI SRR
Yes
Charging
USB-C
Battery
3100 mAh, 3.7V Lithium Ion
Battery Life
Up to 35 hours
Persistent Memory
No
LED Indicators
Limited charging LED indication
Buttons
Action, Reset
Display
0.96" OLED Display
Water Resistance
No
External Antenna Connector
SMA
Resources
Get the information you need
Here you can download documentation, schematics, and software for the OriLive O-Node.
Copyright © OriLive 2025. All rights reserved.
The materials on this page — including but not limited to schematics, PCB layouts, firmware, code, 3D models, and documentation — are the intellectual property of the author.
These resources are provided for personal, educational, and non-commercial use only. Commercial use, redistribution, or modification for sale is strictly prohibited without prior written permission.
Firmware O-Node (Q1 2024)
Firmware for O-Node units, compatible with v1 API (before introduction of callsigns).
Released: 2024-03-10
